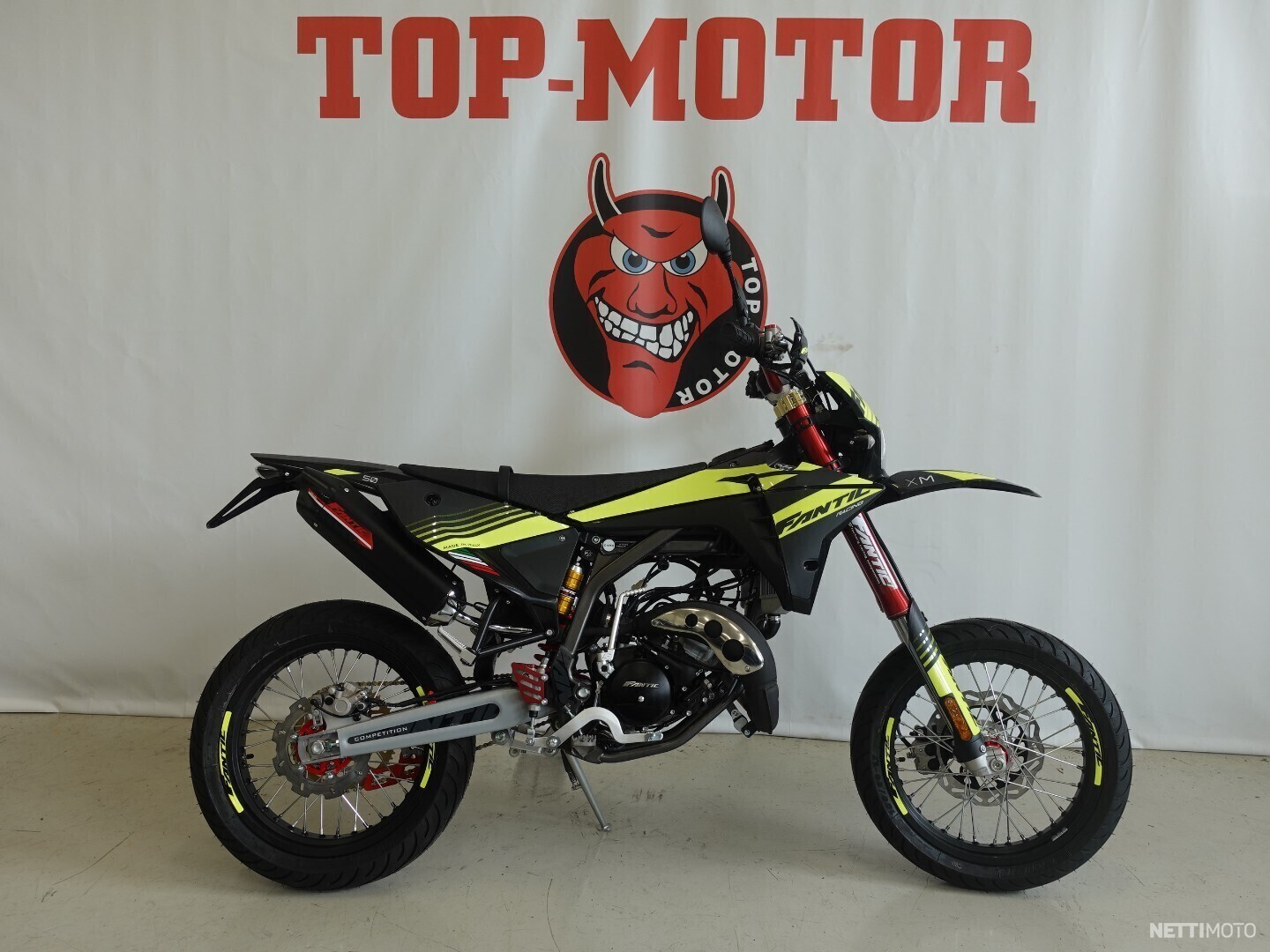

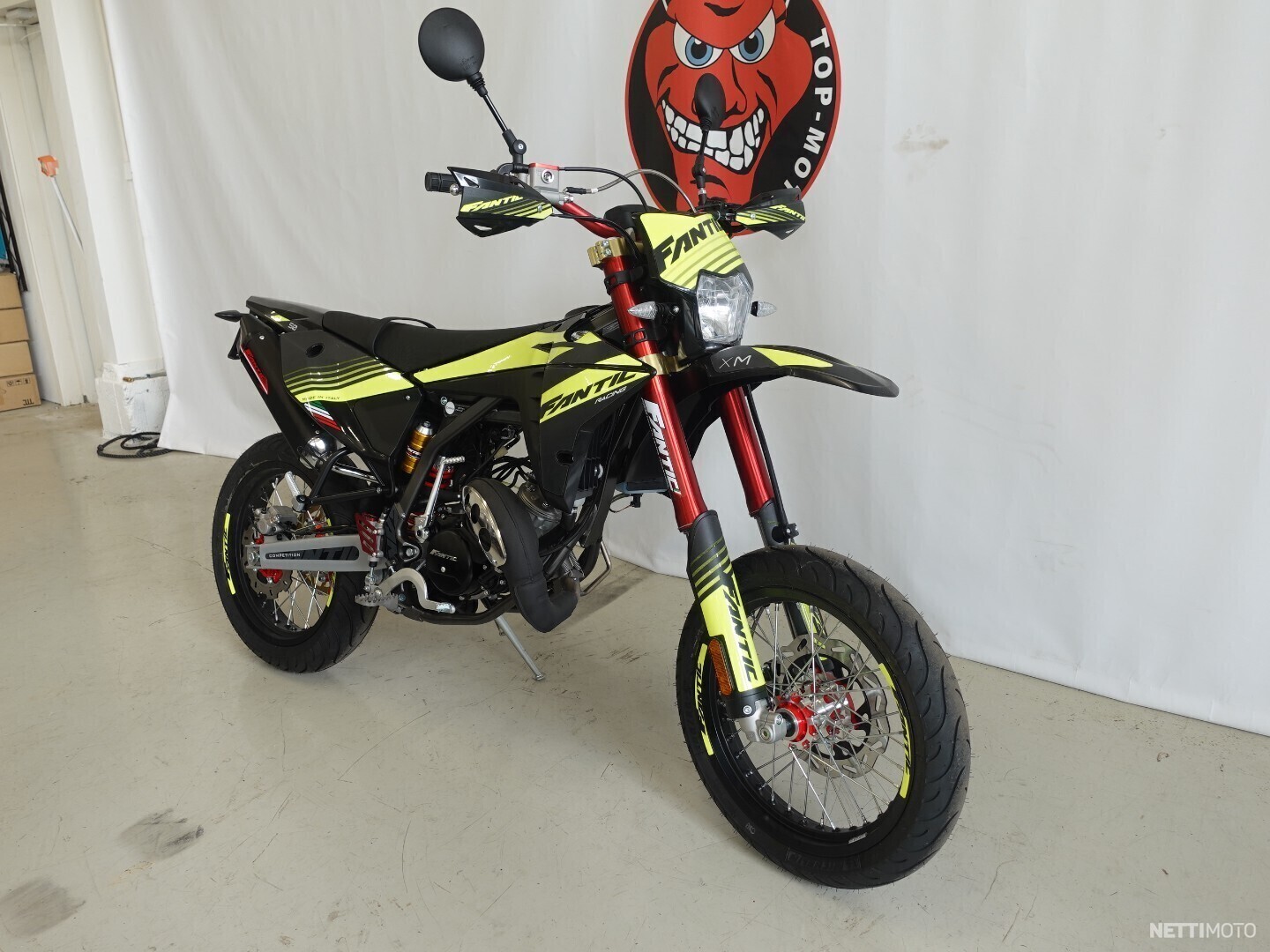

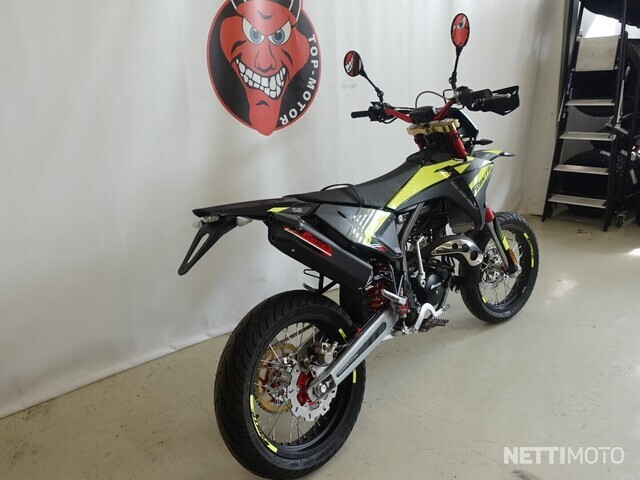

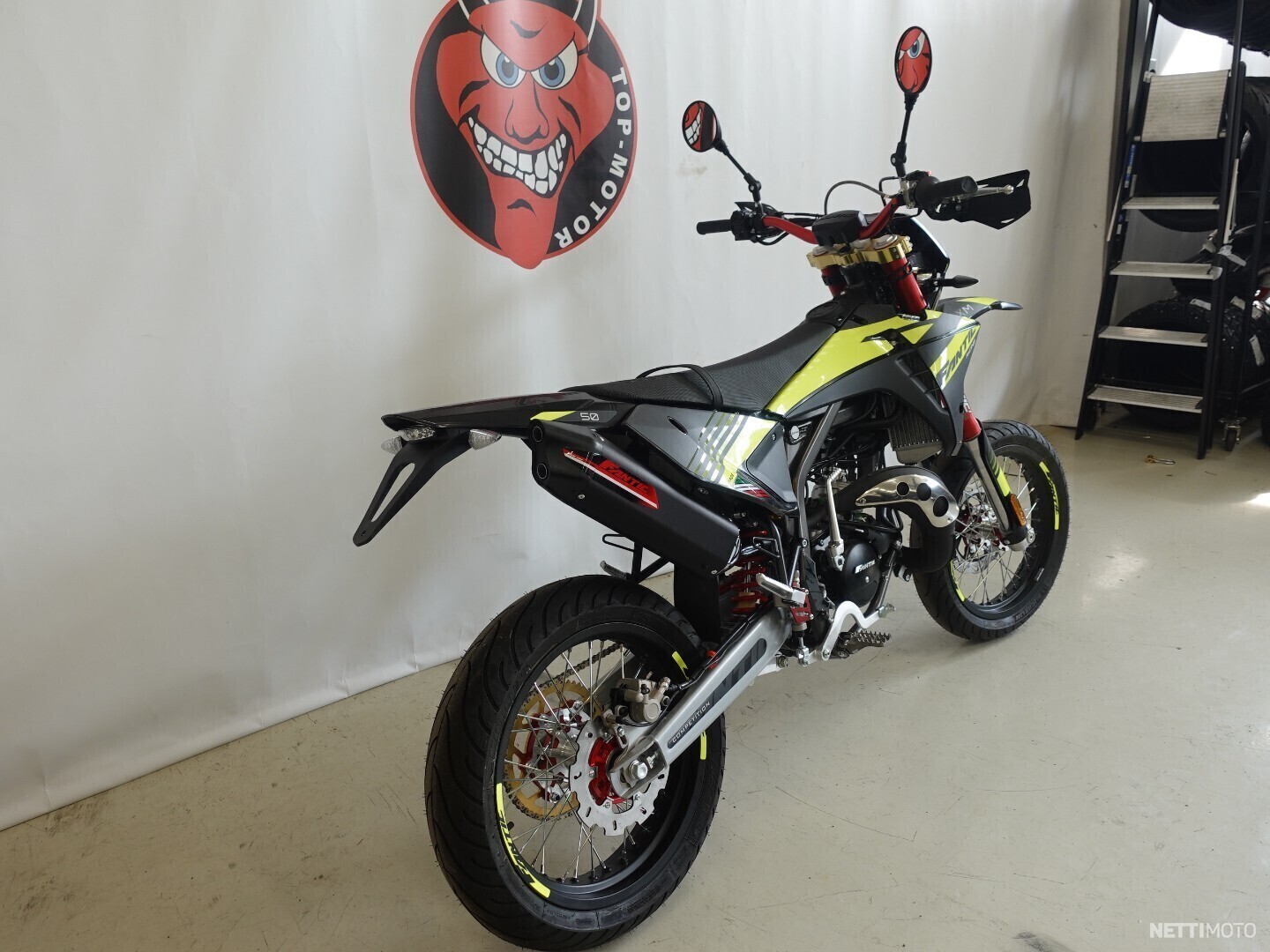

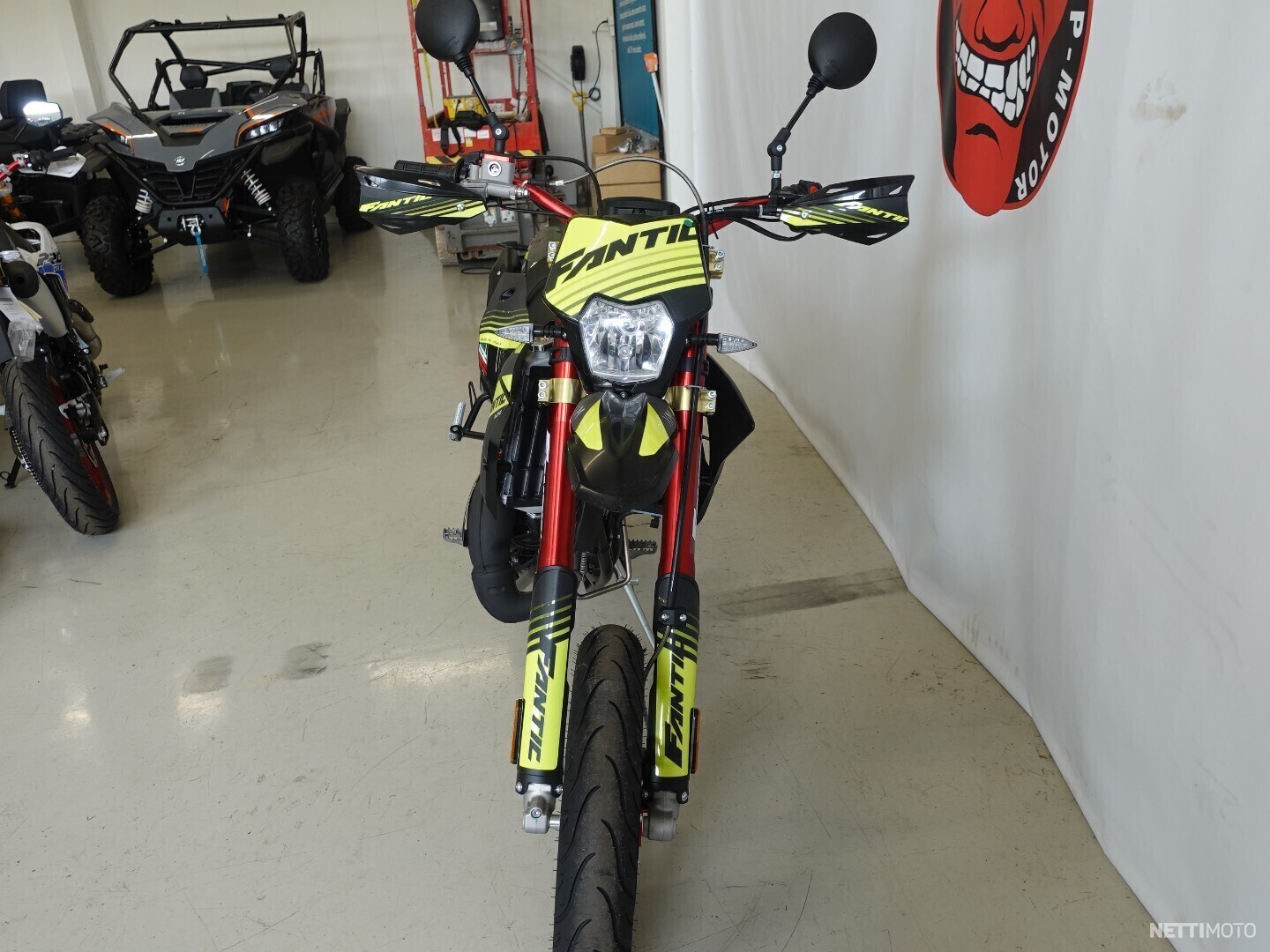

Fantic Motor Competion Motard 50

Fantic uutuus upeilla erikois-osilla

MOTOR

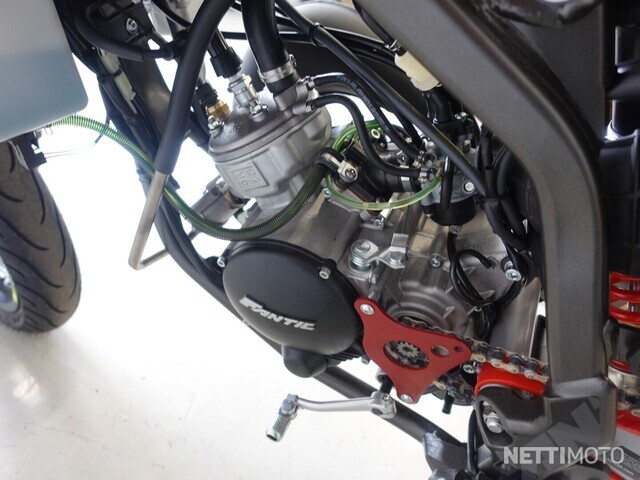

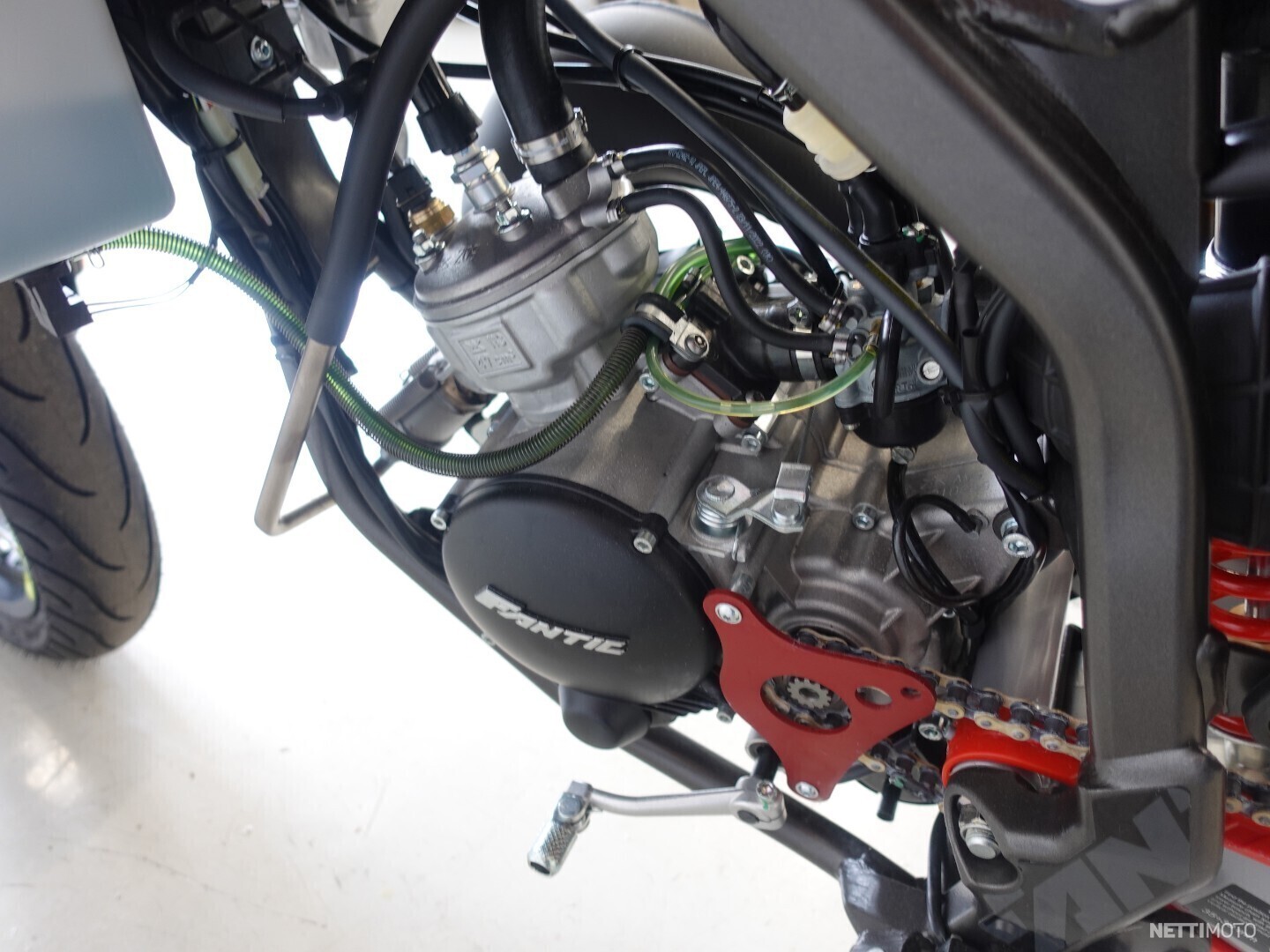

Engine: Single cylinder 2 stroke, Euro5, liquid cooled

Cylinder: 48,9 cc

Carburetor: DellOrto ø16 mm

Bore: 40,3 mm Stroke: 39 mm

Fuel intake : Membrane

Ignition: Electronic, variable

Starter: Kick starter

Gearbox: 6 gears with multidisc in oil clutch

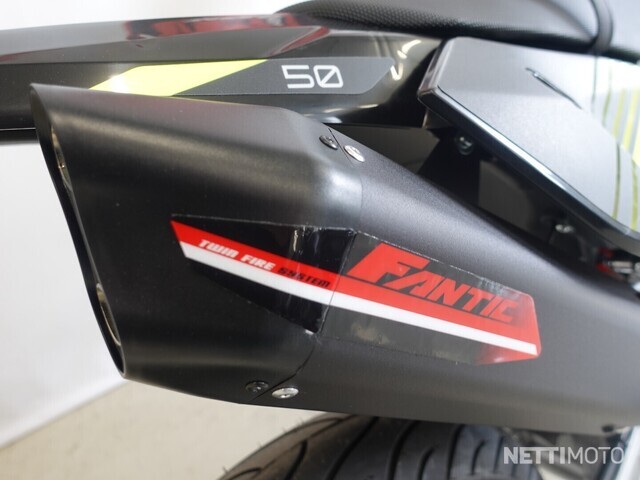

Exhaust: Manifold and muffler Euro5 by BigOne

CO2 Emission: 50.32 g/km*

Fuel consumption: 2.18 l/100 km*

CHASSIS

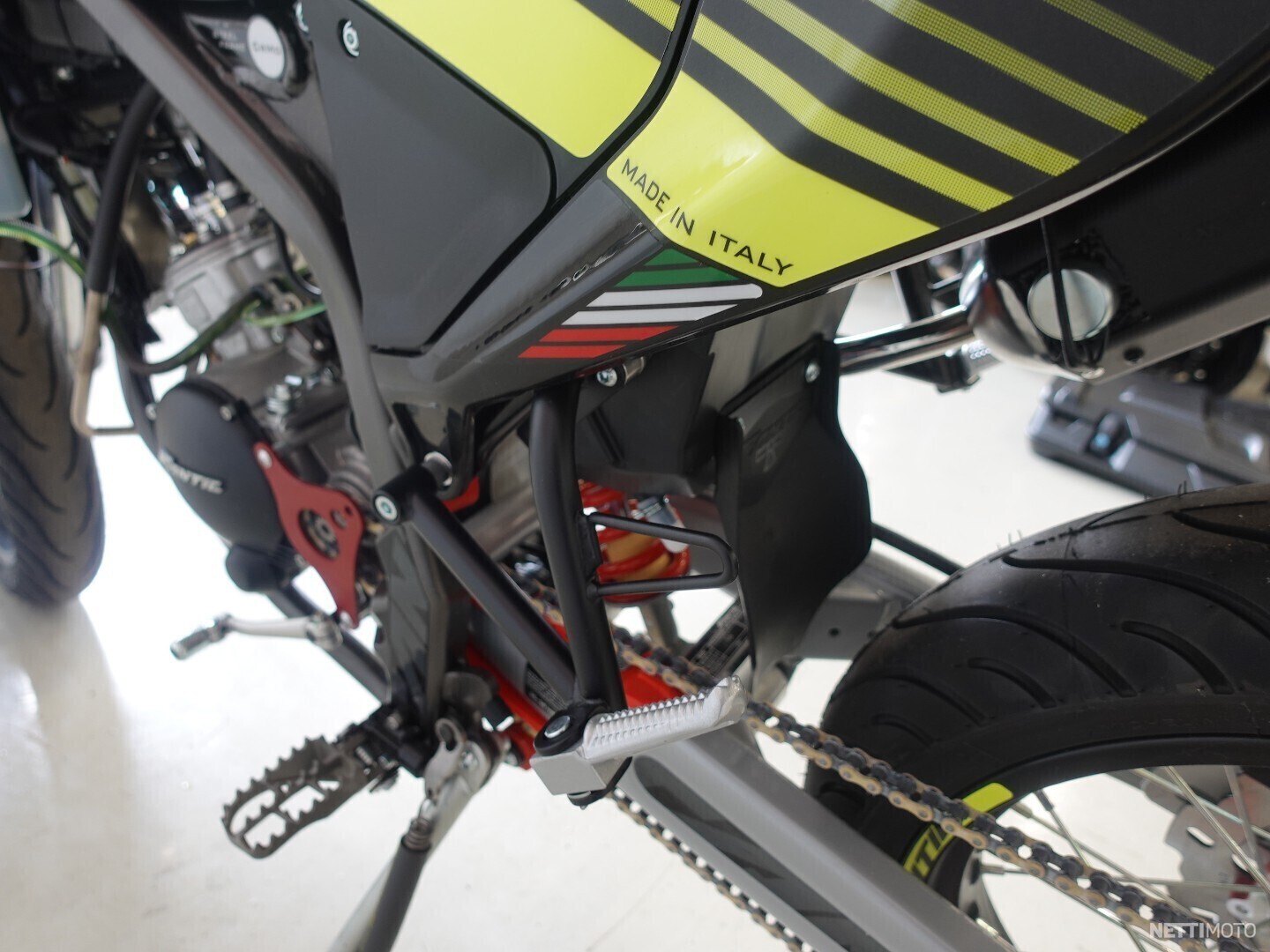

Frame: Perimeter in steel

Sub frame: Removable in steel

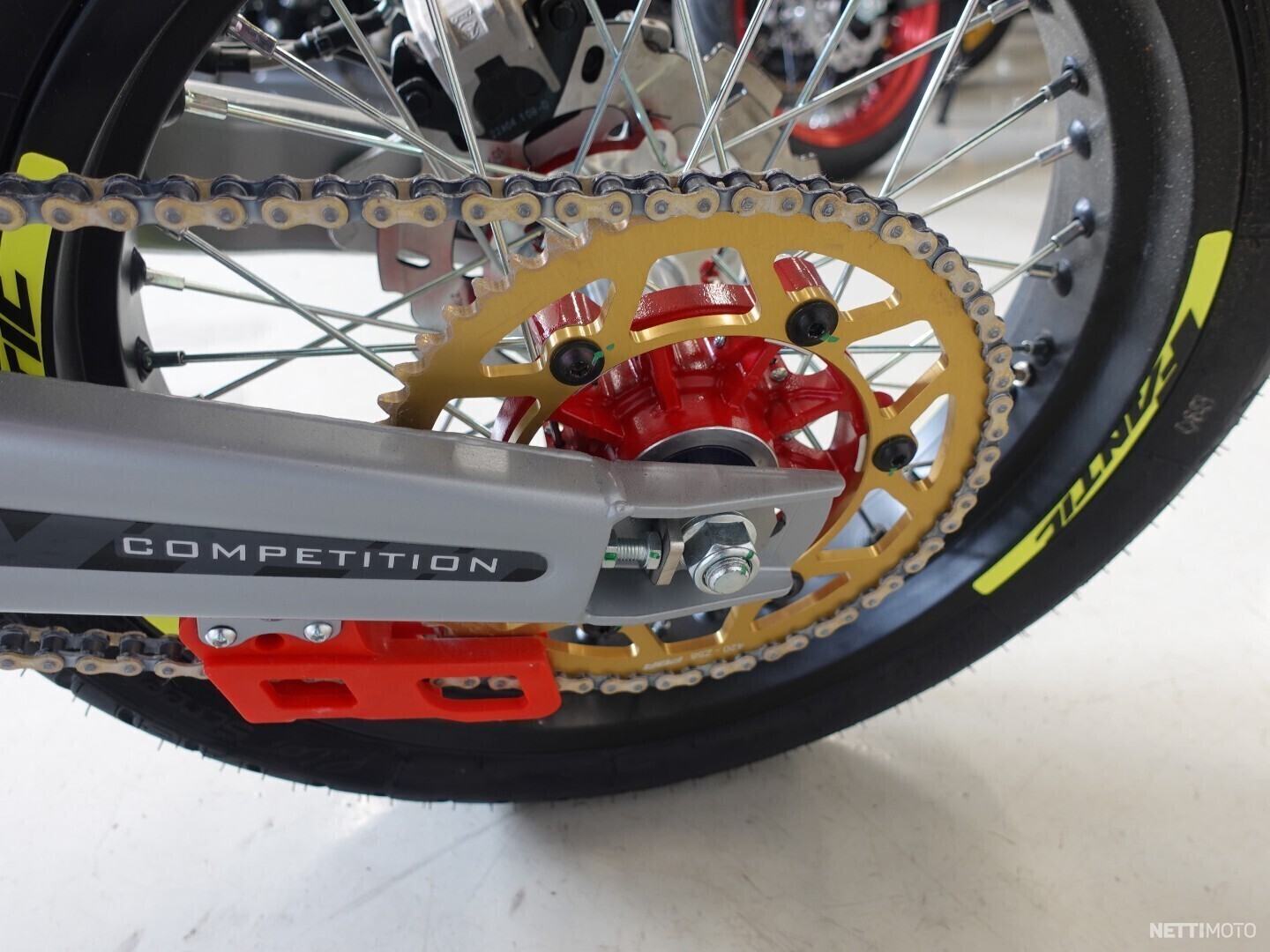

Swingarm: Aluminium, variable and progressive link

Tires: 100/80×17 – 130/70×17

Wheels : Aluminium, anodised black and CNC hubs

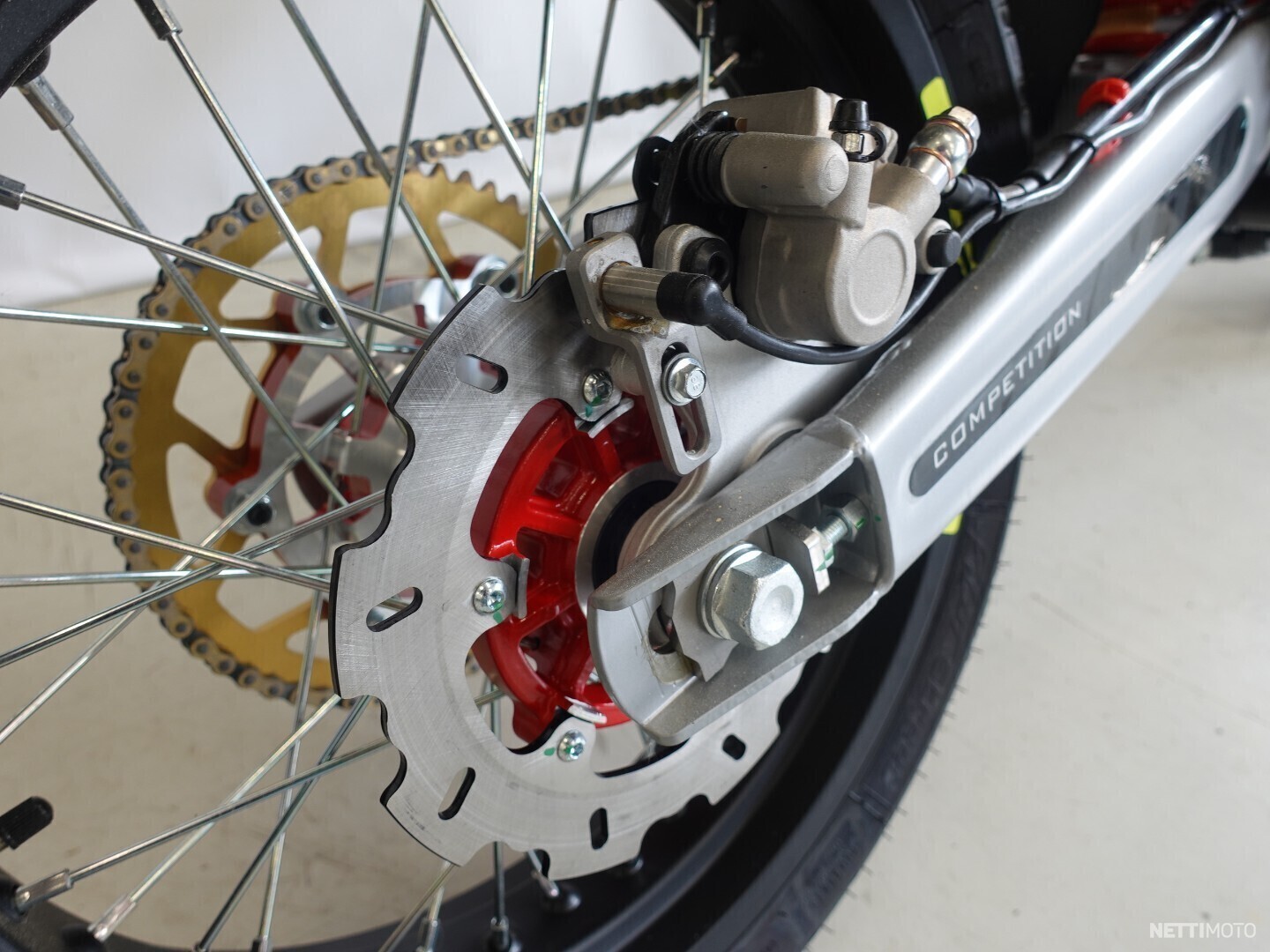

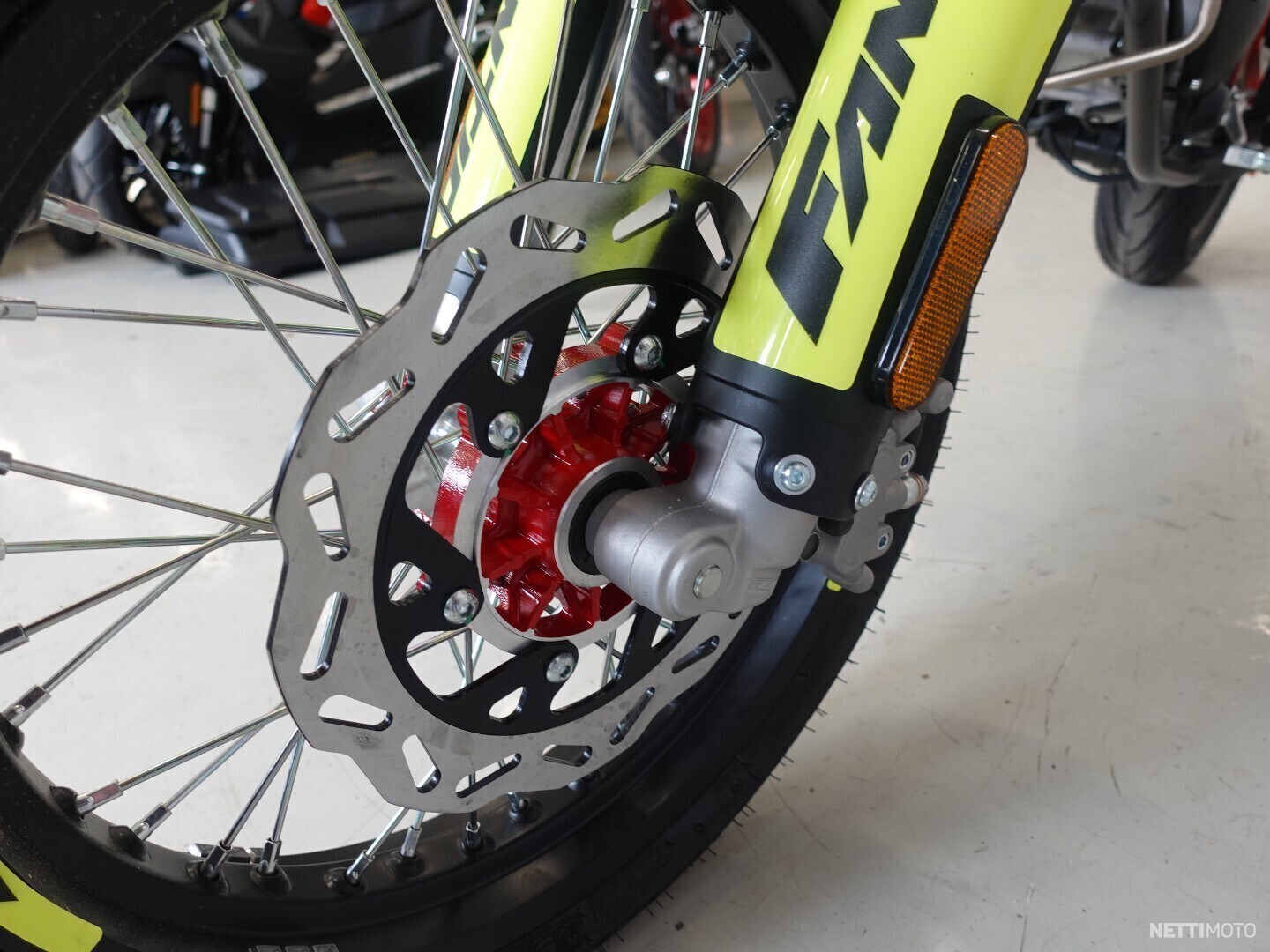

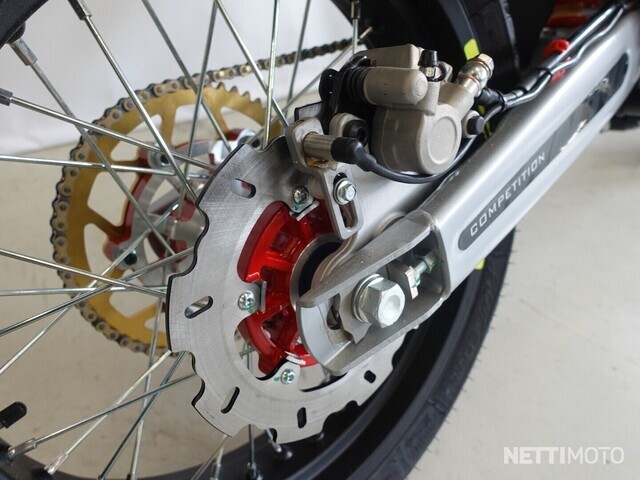

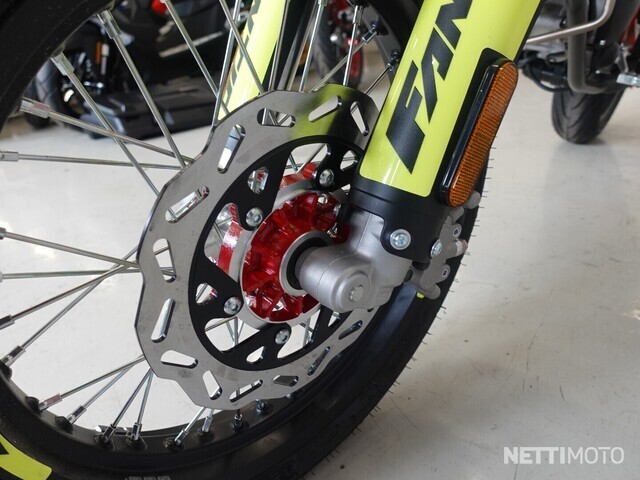

Brakes: Front disc “Wave” ø260mm – Rear disc “Wave” ø220mm

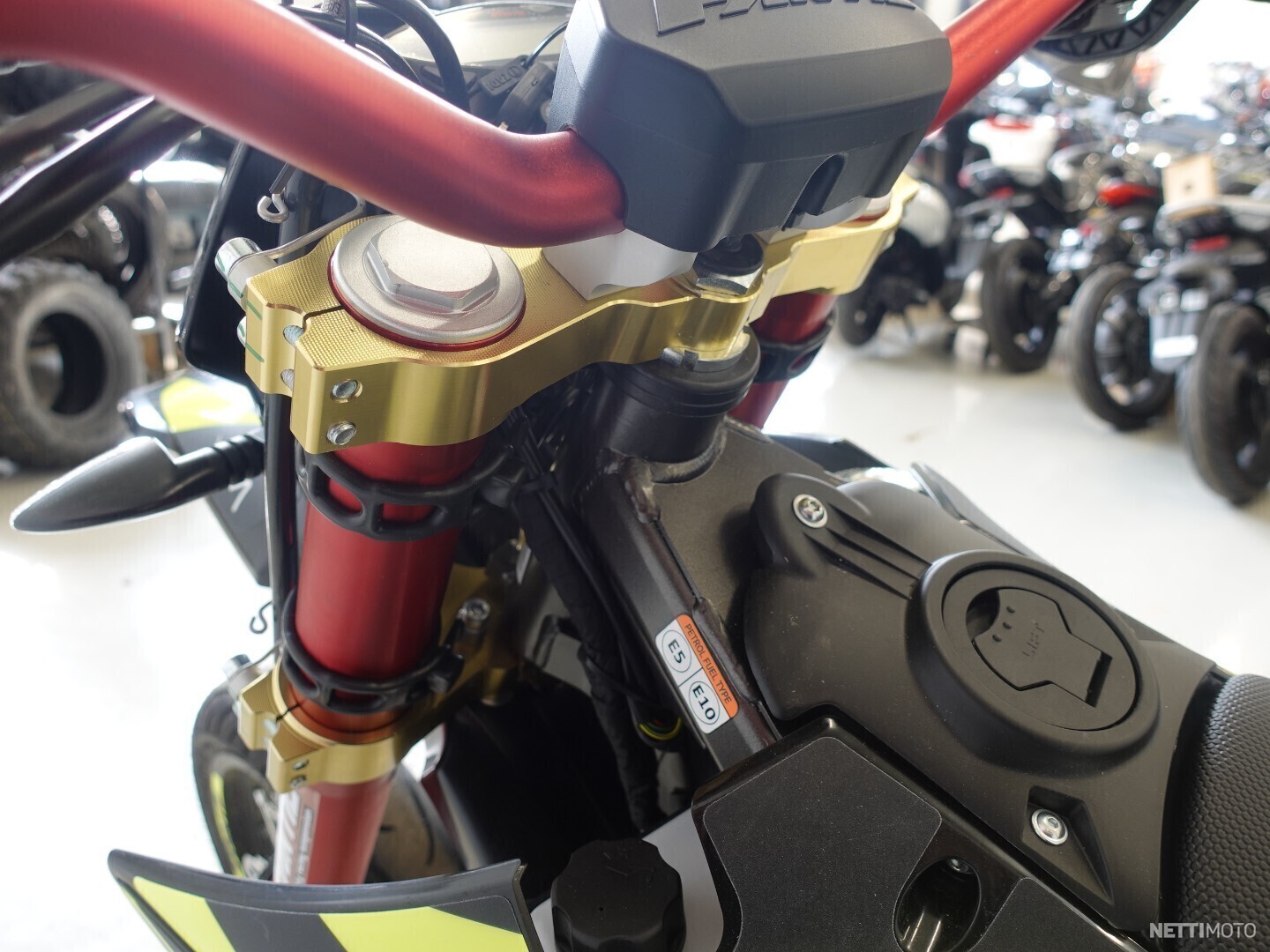

Triple clamps: Aluminium, CNC machined

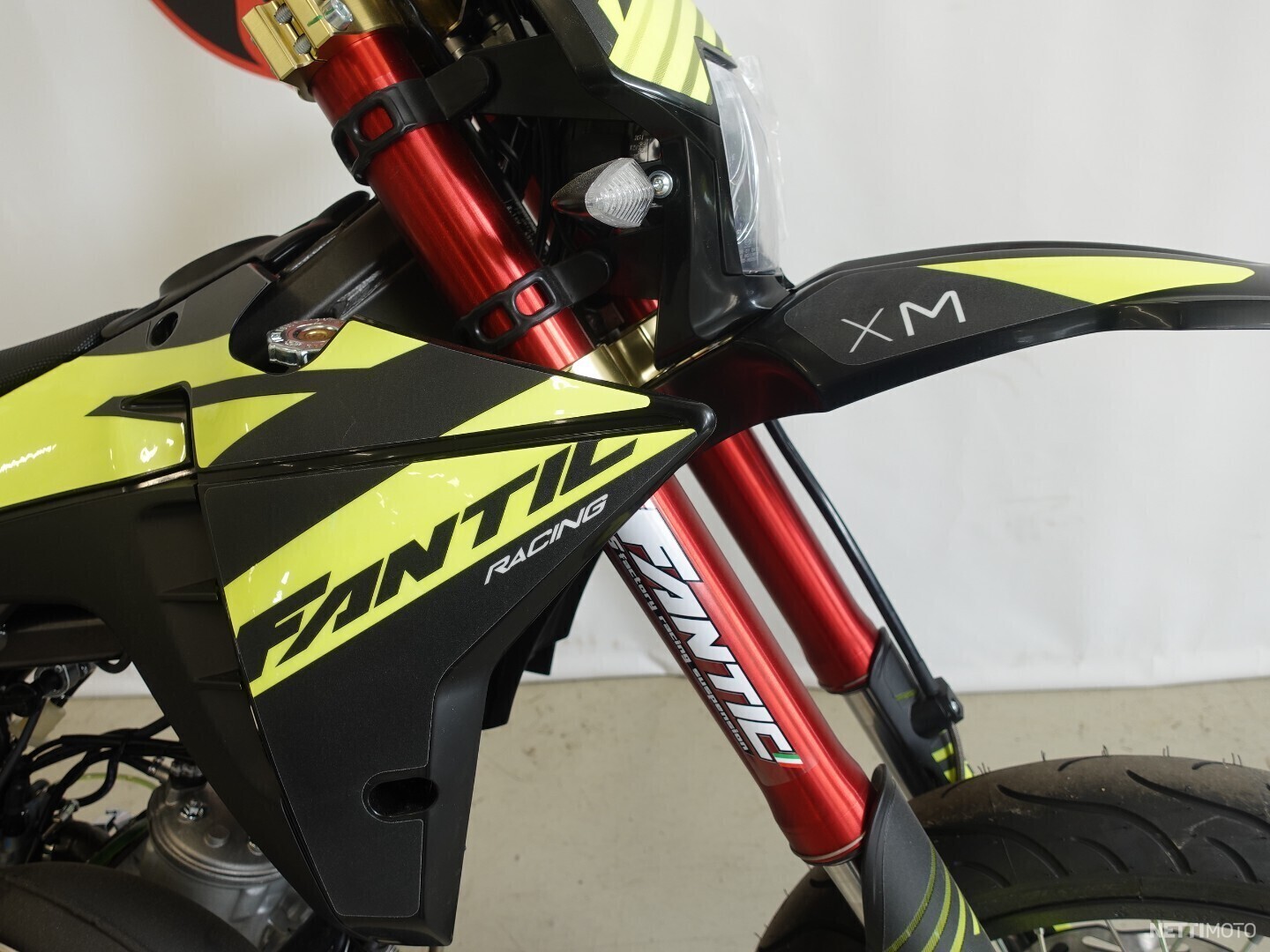

Front suspension: FANTIC FRS ø41mm USD, racing setup

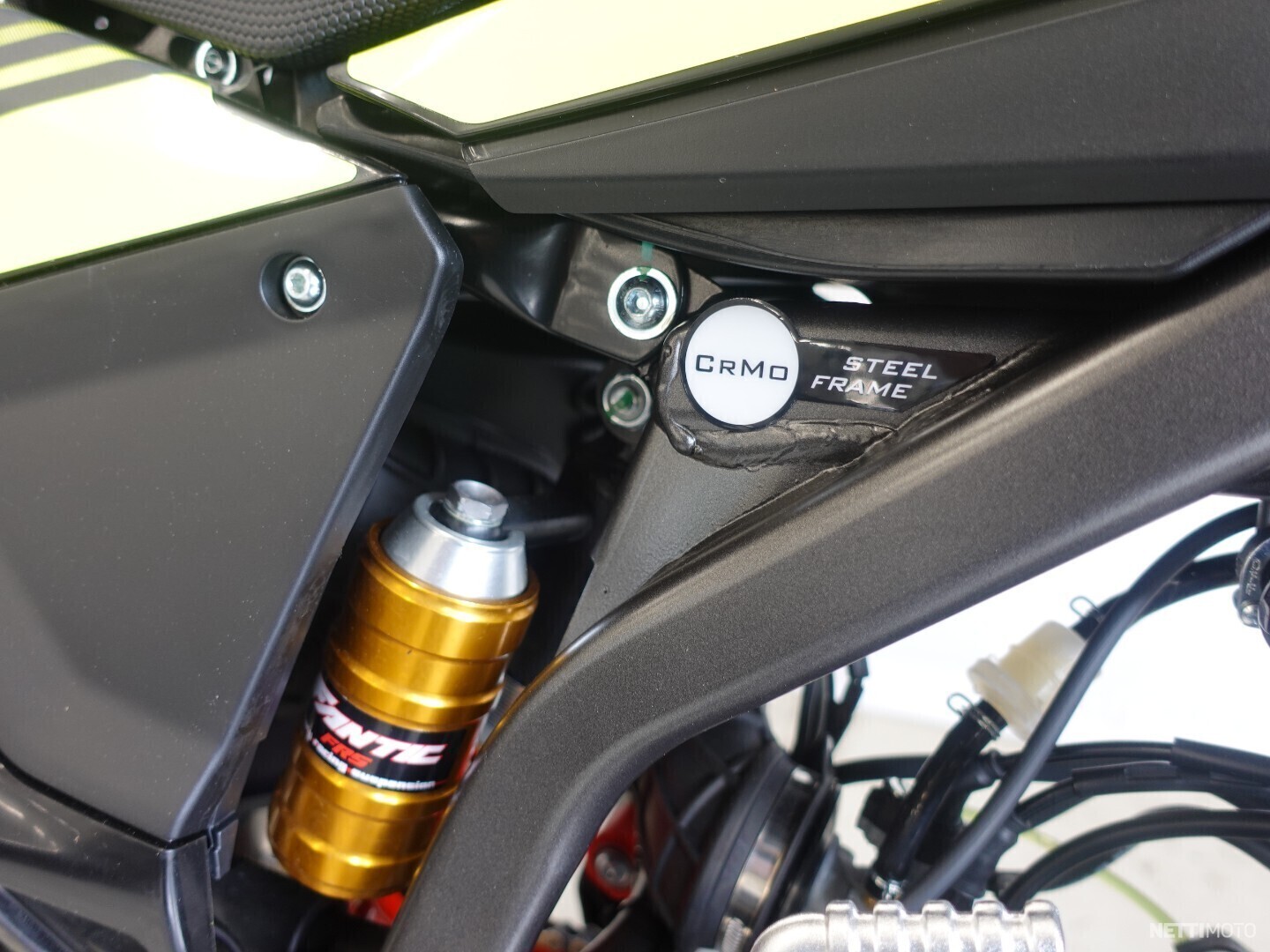

Rear suspension: Mono FANTIC FRS 50 Piggyback – 2 regulation

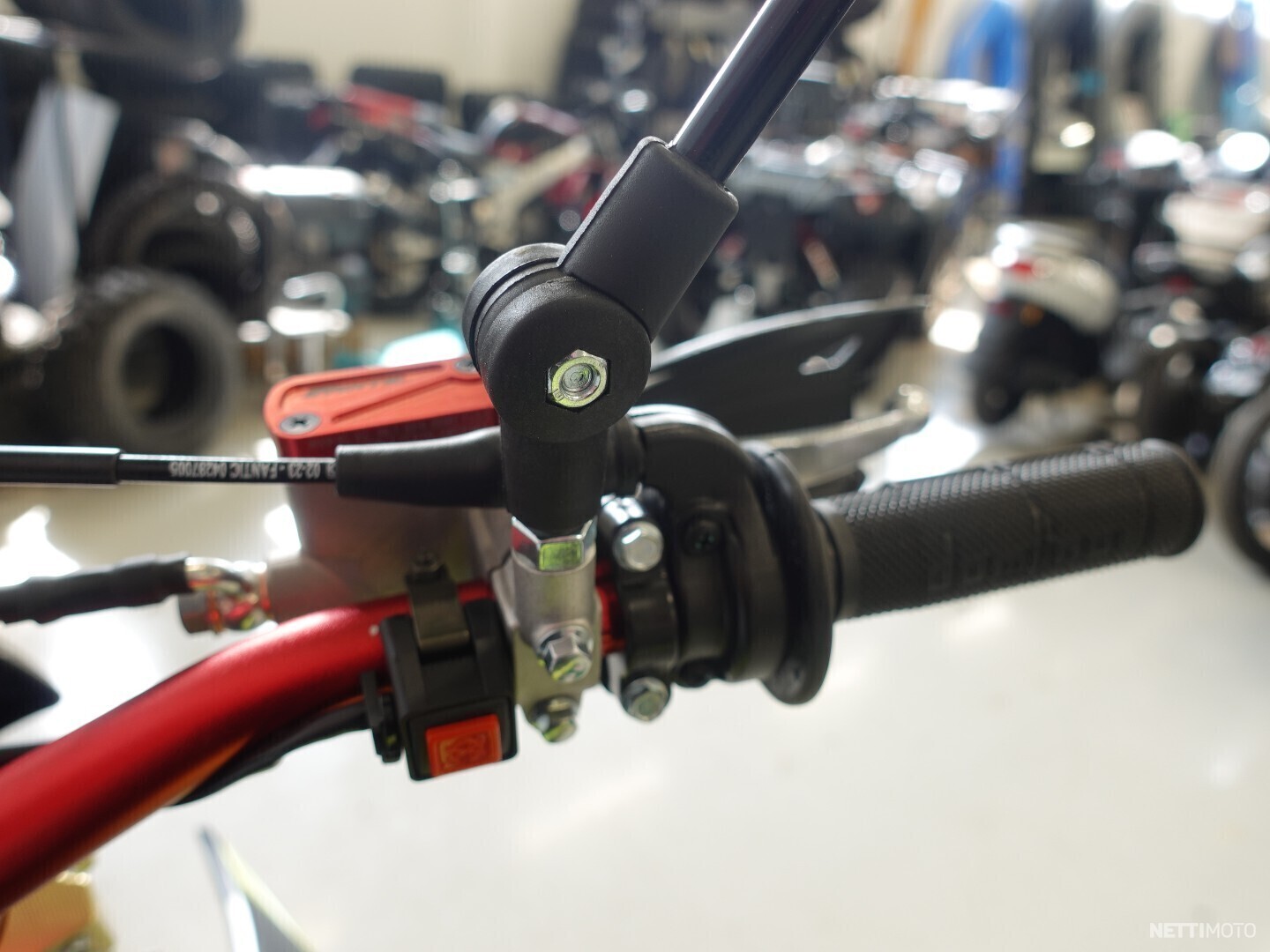

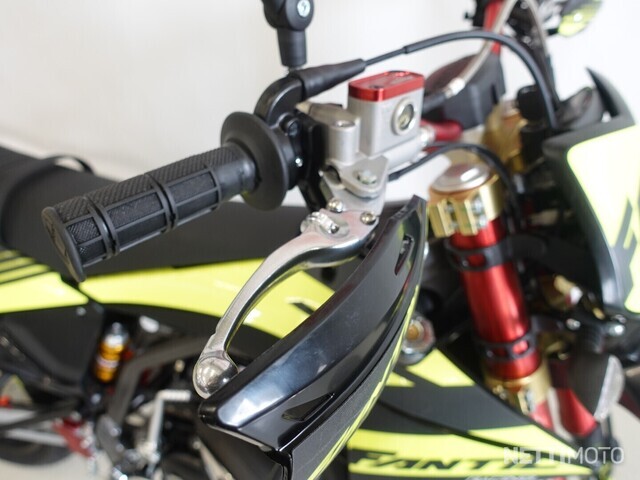

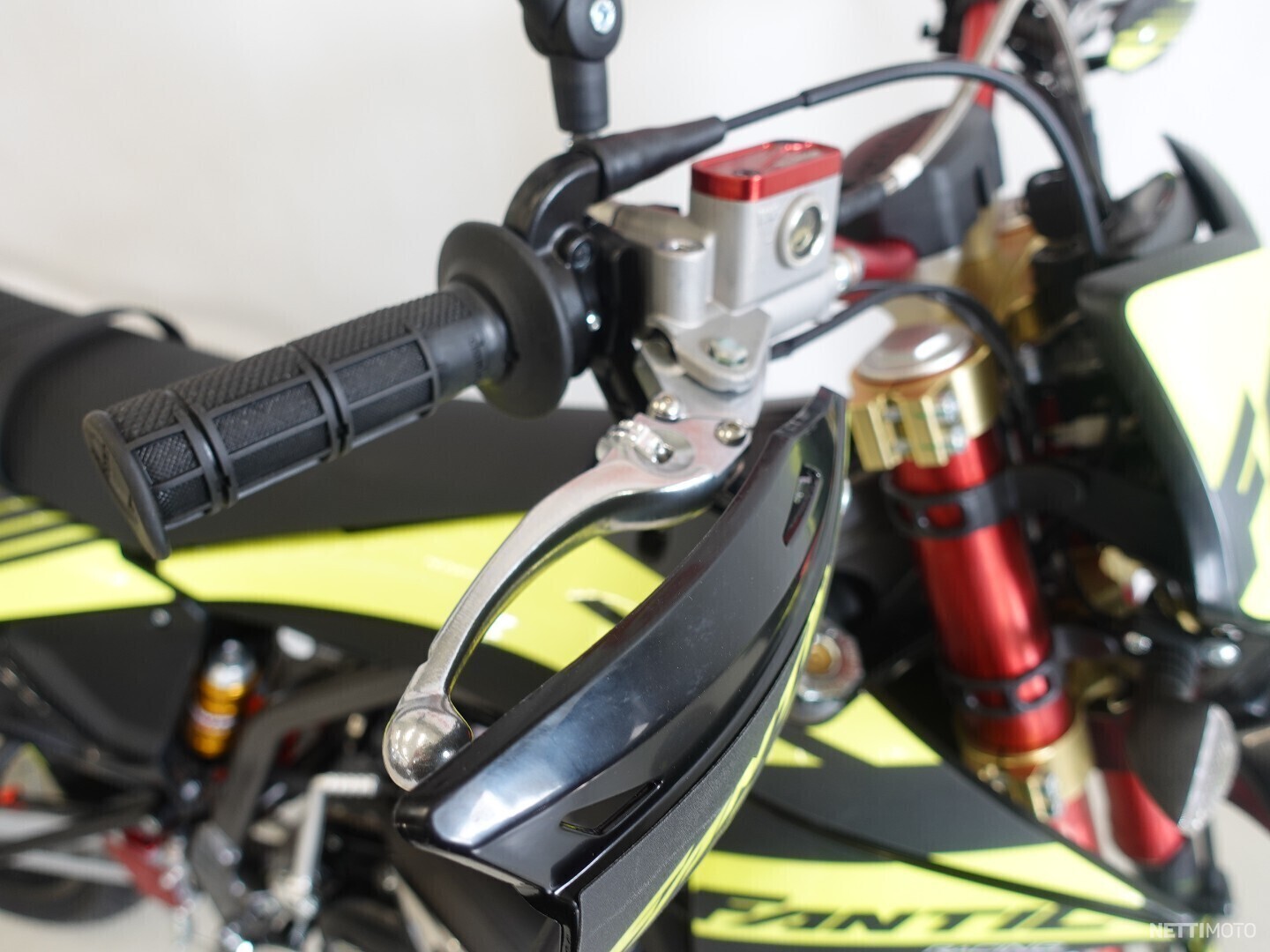

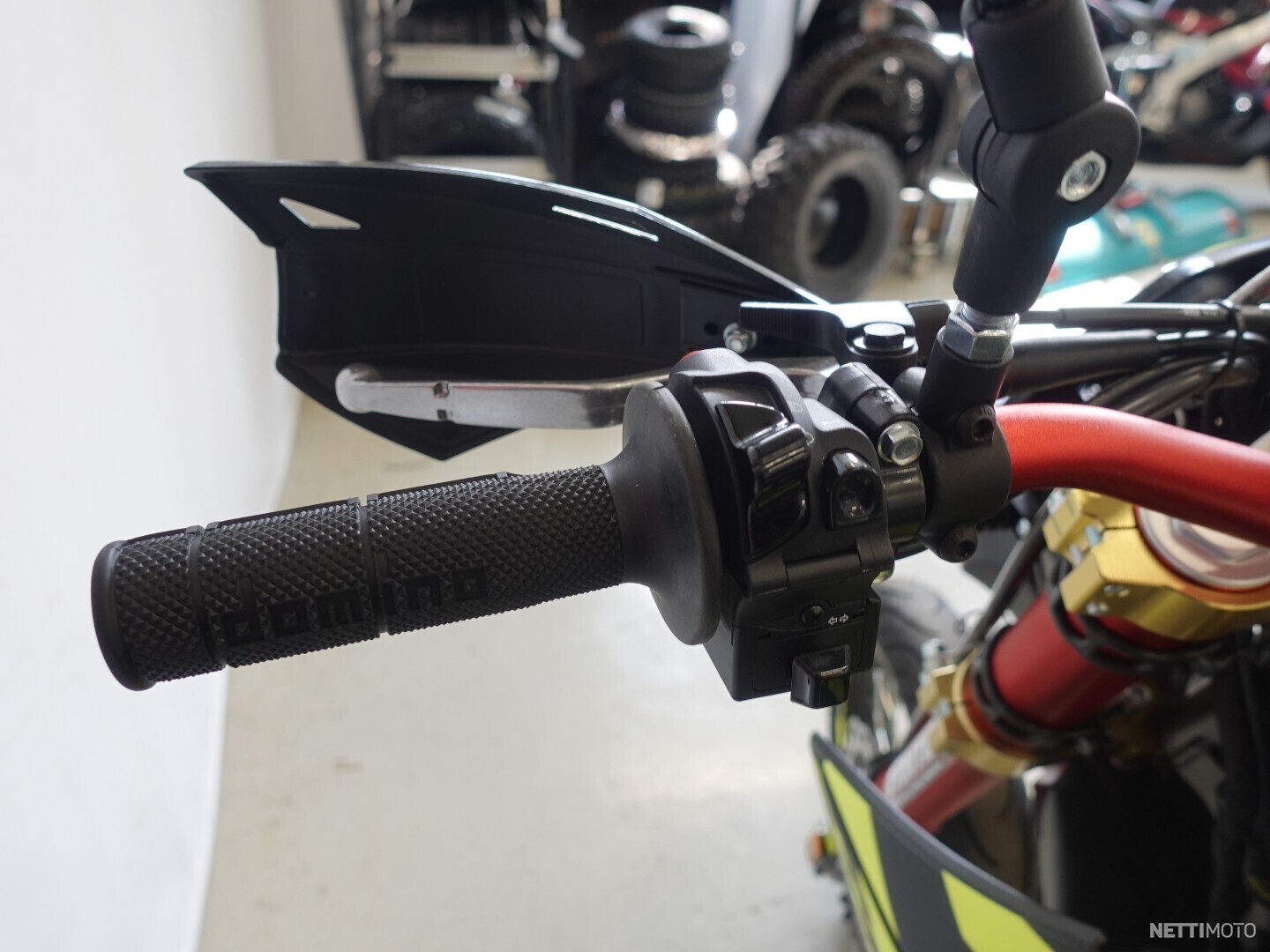

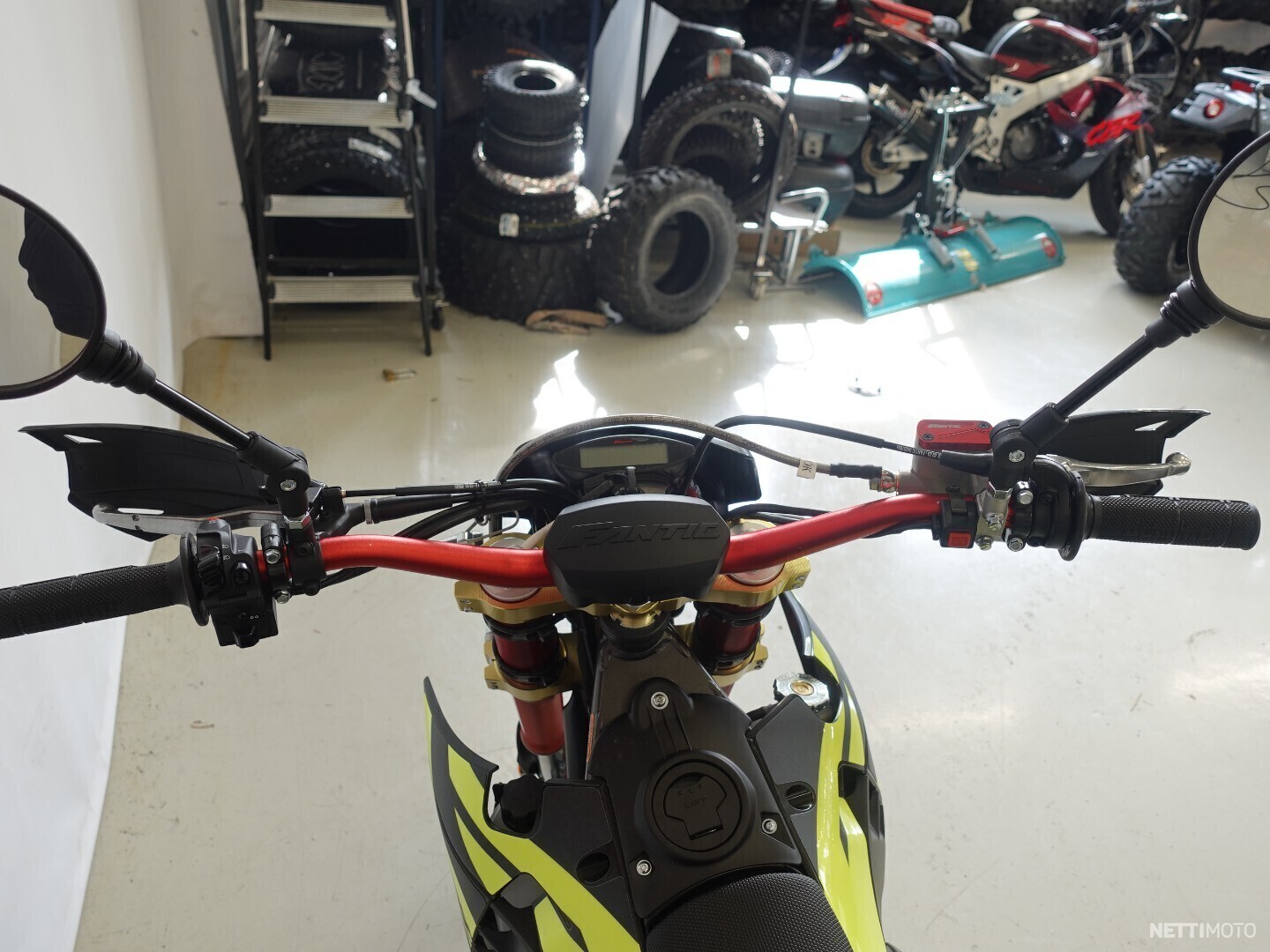

Handlebar: Aluminium, ø28mm without cross bar

LIGHTS

REAR: Full LED

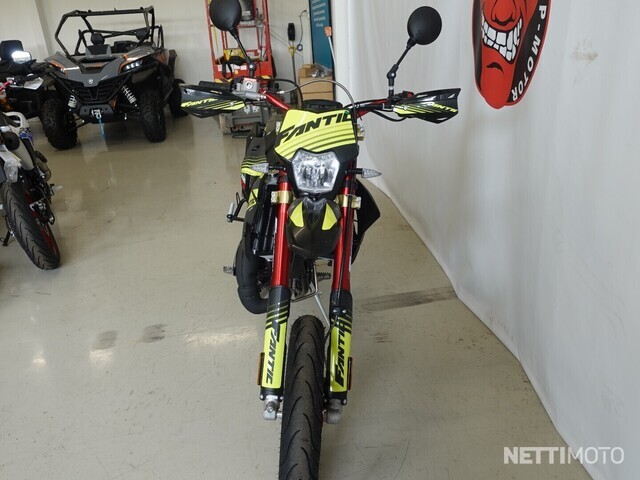

FRONT: halogen Lights

DIMENSION

Length: 2040mm

Seat height: 875mm

Wheelbase: 1420mm

Weight: 95 kg

Fuel tank: capacity 7,5 l
